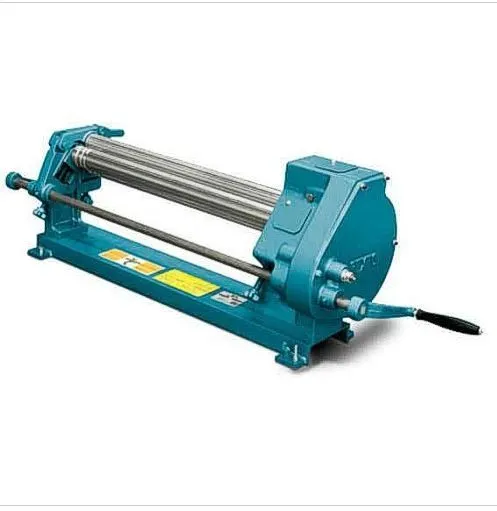

TENNSMITH 36 inch Slip Roll, 3 Driven Rolls, 16 gauge - Made by Tennsmith

• Three driven rolls
• Heavy cast end frames
• 36 inch, 16 ga capacity
• Includes wire grooves

• TENNSMITH SR48-16 slip roll combines precision-turned, ground, and polished high carbon steel rolls with heavy-duty, cast iron end frames and a welded steel base to make an accurate and durable forming tool.

  These machines have three gear-driven rolls that ensure even starting and feeding of materials. All three rolls are constantly driven throughout their adjustment range. The top roll lifts for easy removal of the work piece.

  Convenient operating features include large roll adjusting screws, scales for speeding repeat set-up, and a front mounted handle to lift the upper roll for material removal. Wire grooves are also standard.



  Warranty:

  3 year manufacturer's warranty
• •Mild Steel Capacity: 16 ga
  •Stainless Capacity: 20 ga
  •Working Length (inches): 36
  •Min Forming Radius (inches): 1.5
  •Number/Dia Of Rolls: (3) 3 inch
  •Driven Rolls: 3
  •Wire Grooves: 3/8 inch, 1/2 inch, 5/8 inch
  •Weight (pounds): 720
  •Dimensions (LxWxH): 69 x 19 x 19
• Optional Stand Call us 877-528-2809
• SHIPPING DIMS 77" L X 27" w X 32" h X 800 LBS SKIDDED
